Bourdon tube pressure gauge, Model 113.53, 0-2.5 bar
wikaDescription

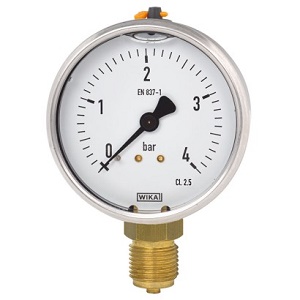

The liquid-filled model 113.53 mechanical Bourdon tube
pressure gauge is constructed with a case from stainless
steel and wetted parts from copper alloy.
WIKA manufactures and qualifies the pressure gauge
in accordance with the standards EN 837-1 and ASME
B40.100. As a safety function, this instrument has a blow-out
device. In the event of a failure, overpressure can escape
there.
Due to the case filling, the pressure element and movement
are efficiently damped. Therefore, these instruments are
particularly suited to measuring locations with high dynamic
loads, such as fast load cycles or vibrations.
The cases of the model 113.53 are available in nominal
sizes of 40 [1 ½"], 80 [3"] and 100 [4"] and fulfil IP65 ingress
protection. With an accuracy of class 2.5, this pressure
gauge is suitable for a wide range of applications in industry.
For mounting in control panels, the pressure gauges with a
back mount process connection can be fitted with a mounting
flange or with a triangular profile ring and mounting bracket.
