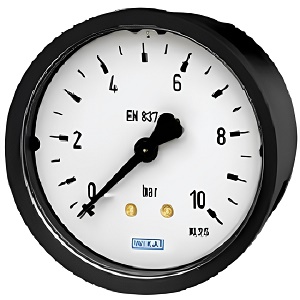

Bourdon tube pressure gauge, Models 111.16, 111.26. , 0-7 bar
wikaDescription
The models 111.16 and 111.26 have been specifically
designed for panel mounting and therefore feature a back
mount process connection.
The model 111 pressure gauges are based on the proven
Bourdon tube measuring system. On pressurisation, the
deformation of the Bourdon tube, proportional to the incident
pressure, is transmitted to the movement via a link and
indicated.
For easy installation, the plastic cases of the panel mounting
series are already equipped with a mounting flange.
The model 111.16 Bourdon tube pressure gauge can be
fitted to the control panel by means of a mounting bracket
(accessory). The model 111.26 is mounted to the panel by
“snap-in mounting” using lateral locating lugs at the case.
In addition, metallised front bezels can be supplied for the
model 111.26.
The panel mounting series of model 111 is also available in
customer-specific versions, e.g. with individual dial layout.
