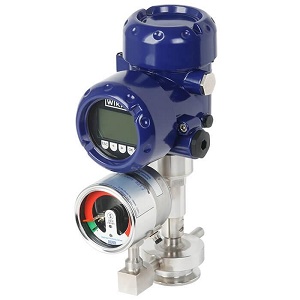

Diaphragm monitoring system with clamp connection, Model DMS-FP, vacuum -1 to +10 bar
wikaDescription
The WIKA combinations consisting of diaphragm seal,
pressure measuring instrument and monitoring element are
best suited for the harshest and hygienic measuring tasks.
The systems can withstand the cleaning vapour temperatures occurring in SIP processes and ensure a sterile
connection between the medium to be measured and the
diaphragm seal.
The patented diaphragm monitoring has been designed
specifically for the highest safety requirements in the
pharmaceutical and biotechnology industries. The monitoring
element is mainly used for electrical signal transmission of
the diaphragm condition. In addition, the diaphragm condition
is displayed on a dial with red/green areas.
In the event of a diaphragm rupture, a second, internal
diaphragm in the pressure measuring instrument ensures the
reliable separation of the environment and the process.
Mounting of the diaphragm seal to the measuring instrument
is made as direct mounting as standard. A fluid inside the
system, which is explicitly chosen to suit the particular application, hydraulically transmits the pressure to the pressure
measuring instrument.
Diaphragm seals with clamp connection have been specifically developed for use in sterile processes and are integrated into the process by means of a clamp. This ensures the
hygienic process integration of the diaphragm monitoring
system.
The product WIKA model DMS-FP is protected under granted patent, see e.g. US 2018180505, DE 102016015447,
CN 108240885.
